Product Description

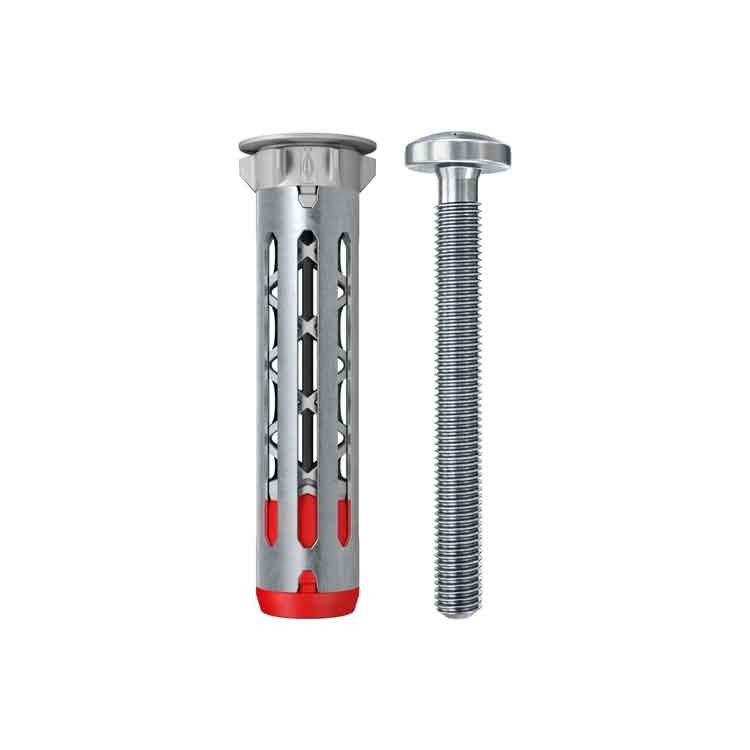

The fischer DuoHM Cavity Fixing is a panel plug suitable for a range of panel building materials in all common thicknesses.
The DuoHM is made from a unique combination of nylon and metal, with a nylon body and a metal sleeve. This ensures high loads and maximum flexibility when fitting to panels. The metal sleeve folds behind the panel and presses against the back of it, while the nylon component knots in the panel.
The DuoHM’s design also means a quick and easy installation, using a cordless screwdriver. Therefore there is no need for additional setting tools, reducing installation time by up to 50% compared to conventional panel plugs. Supplied with panhead screws.
fischer DuoHM Cavity Fixing Advantages
- Quick and easy installation with a simple cordless screwdriver.
- Two component technology (nylon and metal) for high load requirements; up to 20kg in plasterboard and up to 60kg in other board materials.
- Nylon anti-rotation lock prevents damage to the panel.
- Glass fibre reinforced anchor tip for high stability during tightening torque.
- Comes with panhead screws, but other metric screws are suitable e.g. countersunk and hexagon heads.
- The metric internal thread also means that screws can be fastened and then unfastened several times.
- Narrow plug edge.
fischer DuoHM Cavity Fixing Functioning
- Available in two drives; TX and PH.
- One plug length covers panel thicknesses from 9.5-30mm.
- Minimum cavity depth 45mm.
- Minimum drill hole depth 55mm.
- Maximum fixture thickness 10mm.
Building Materials
Plasterboard and gypsum fibreboards | Hollow ceilings | Wood wool lightweight boards | Chipboard | Plywood panels
Applications
Pictures | TV mounts | Lamps | Wall shelves | Towel rails | Mirror cabinets | Curtain rails | Substructures
